破碎系統設備 單段錘式破碎機
適用于中等硬度的石灰石等礦石的破碎，入料粒度大，破碎比大，系統簡單，電耗低。適用于含粘性?shī)A土多的礦石破碎。
●采用特殊的排料結構，消除物料堵塞、粘附。
Special material discharging structure, eliminating material clogging and sticking;
●采用啟蓋、抽取錘軸、取篦子小車等專用裝置，便于更換易損件。
Special devices, such as carriage, swing-out hammer shaft and trolley to rollout the grate bar cage, making
it easier to replace wear parts;
●大型號的單轉子破碎機配有給料輥，減輕大塊礦石對轉子的沖擊，使轉子運轉更為平穩。
Large single rotor crusher equipped with material feeding roller, significantly decreasing the impact on
rotor by large boulders and providing for a more stable operation;
●具有特殊過鐵保護裝置，可將進入機內的金屬異物自動排出機外，運行安全可靠。
Specially-designed ferrous tramp metal protection device, which expels alien metallic substances out of the
machine, ensuring safe and reliable operation;
●操作簡單，維修方便，降低了工人的勞動強度。
Easy operation and maintenance, reducing workers’ labor intensity

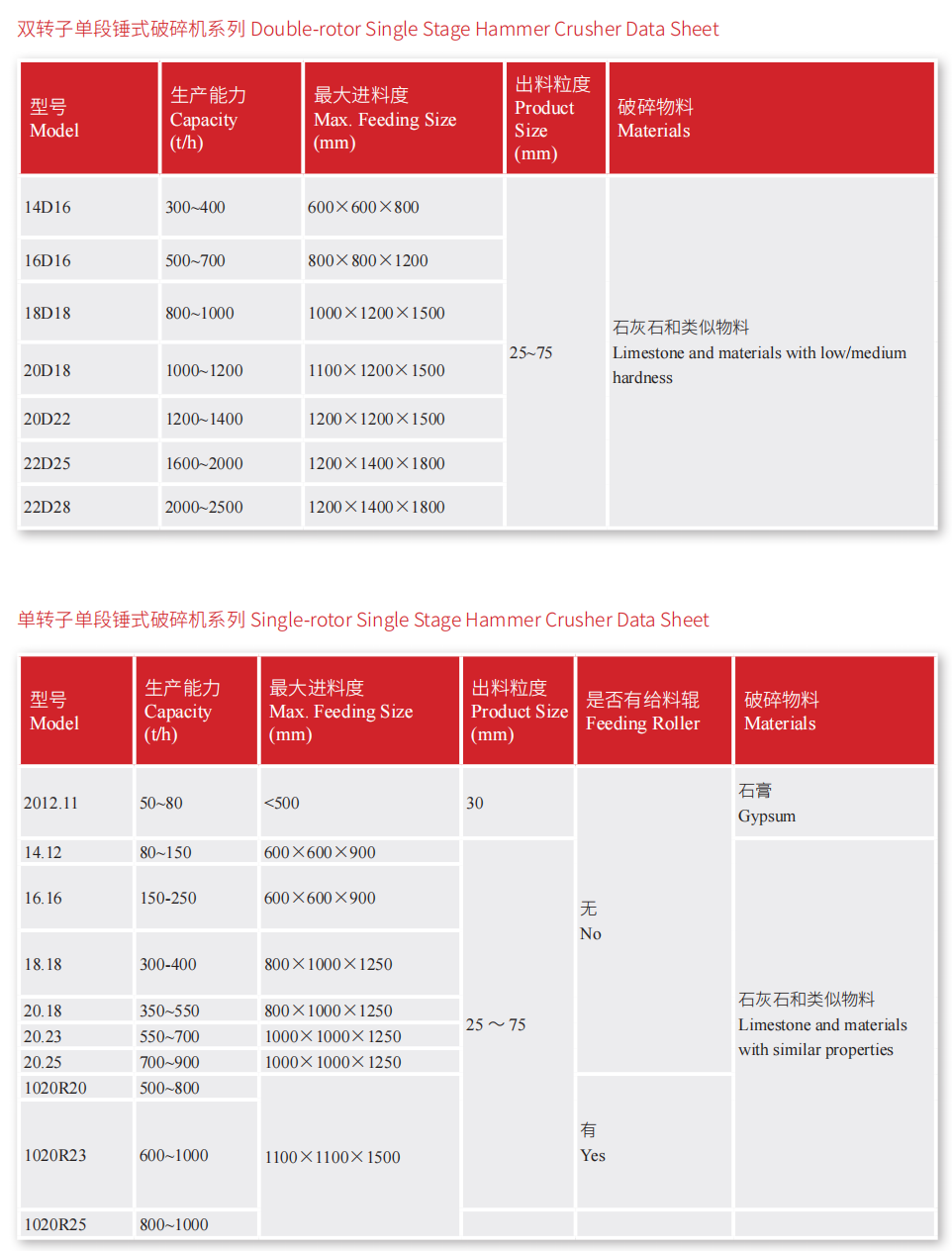

技術參數
